Application overview
High-efficiency coating machine is mainly used in pharmaceutical and food industries. It is a high-efficiency, energy-saving, safe, clean and electromechanical coating equipment that complies with GMP requirements for organic film coating, water-soluble film coating, slow and controlled release coating, dripping pill coating, sugar coating and chocolate and candy coating.
設備特點
Constant pressure variable peristaltic pump, oil return pipe is canceled.
Touch screen display.
Expand the PLC module, and all parameters are set on the control panel.
Sound insulation and heat insulation, playing a role of heat preservation in the machine.
Fully sealed, negative pressure operation.

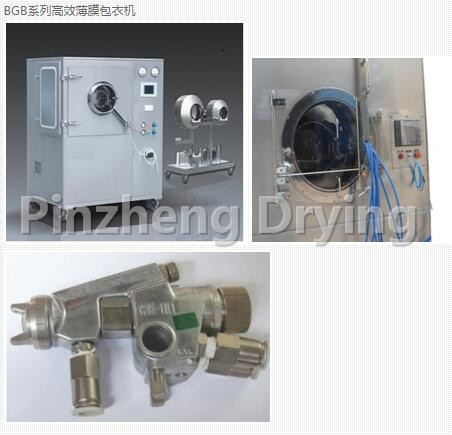

Spray gun (Iwata, Japan) - uniform atomization, large spray surface, adjustable direction, no leakage and blockage of the nozzle.
Promote the materials to be mixed, rolled and exchanged frequently to avoid debris and improve the yield.
1. Blower 2. Filter 3. Heater 4. Main engine 5. Outlet dust remover 6. Induced draft fan 7. Silencer 8. Solution tank
Project specification | BGB-5 | BGB-40 | BGB-80 | BGB-150 |
Productive power(kg/batch) | 5 | 40 | 80 | 150 |
Drum speed(rpm) | 6-30 | 6-30 | 3-15 | 3-15 |
Main engine motor power(kw) | 0.75 | 1.1 | 1.5 | 2.2 |
Motor power of high-efficiency filtering hot air cabinet(kw) | 0.35 | 0.55 | 1.1 | 1.5 |
Motor power of dedusting exhaust fan(kw) | 2.2 | 3 | 3 | 5.5 |
Overall dimension of main engine（L x W x H） | 810x710x1410 | 1000x800x1600 | 1250x990x1880 | 1570x1260x2060 |
All parameters are for reference only. The company has the right to change them according to the material conditions without further notice.
